Drawing lines on an Amiga
Drawing lines is, when you work with vector graphics, necesairy. But it is also an expansive routine.
Here is my linedraw routine that I use to draw my screens.

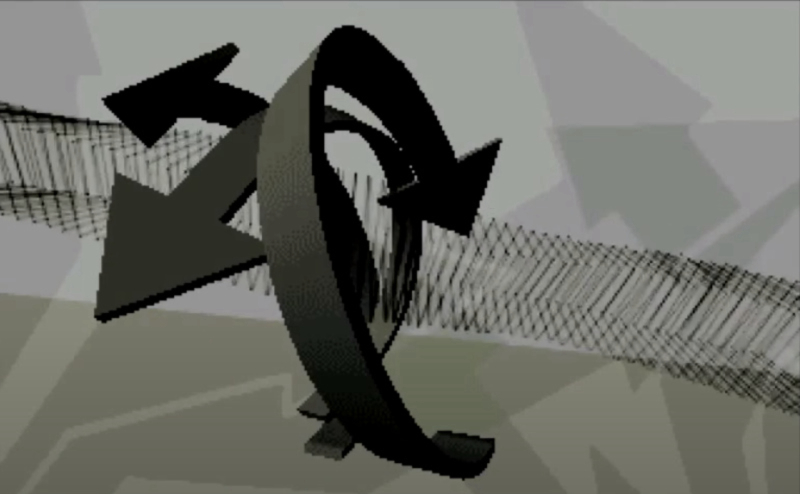

The image is taken from the 64K intro from: Focus Design - Monotit, lines & arrows
** ------------------------------- **
** Linedraw
** ------------------------------- **
; Sync Line Drawing Routine
; d0=X1
; d1=Y1
; d2=X2
; d3=Y3
; a0=Bitplane
; a4-a5 storage of cliplines (each plane)
Width = SCREEN_WIDTH
Heigth = SCREEN_Y
Depth = 1
MINTERM = $4a
; Make sure that when you start to call this function that you have called LineInit first
LineDraw:
tst.w d4
beq.w .LineOut
cmp.w d1, d3
beq.w .LineOut
bgt.s .Line1
exg d0, d2
exg d1, d3
.Line1:
sub.w d0,d2
sub.w d1,d3
subq.w #1,d3
moveq #0,d4
ror.w #4,d0
move.b d0,d4
and.w #$f000,d0
add.b d4,d4
add.w d1,d1
add.w Line_Mulu(pc,d1.w),d4
lea 0(a0,d4.w),a0
move.w d0,d4
or.w #$0b<<8|MINTERM,d4
moveq #0,d1
tst.w d2
bpl.s .Line2
neg.w d2
moveq #4,d1
.Line2:
cmp.w d2,d3
bpl.s .Line3
or. #16,d1
bra.s .Line4
.Line3:
exg d2,d3
add.b d1,d1
.Line4:
addq.b #3,d1
or.w d0,d1
add.w d3,d3
add.w d3,d3
add.w d2,d2
tst.w (a6)
.Line5:
btst #6,$2(a6)
bne.s .Line5
move.w d3,$062(a6)
sub.w d2,d3
bge.s .Line6
or.w #$40,d1
.Line6
move.w d1,$042(a6)
move.w d3,$052(a6)
sub.w d2,d3
move.w d3,$064(a6)
move.w d4,$040(a6)
move.l a0,$048(a6)
move.l a0,$054(a6)
addq.w #1<<1,d2
lsl.w #5,d2
addq.b #2,d2
move.w d2,$058(a6)
.LineOut:
rts
** ------------------------------- **
Line_Mulu:
MuluCount set 0
rept Heigth
dc.w MuluCount*Width*Depth
MuluCount set MuluCount+1
endr
** ------------------------------- **
** Init linedraw
** ------------------------------- **
LineInit:
tst.w (a6)
.wb: btst #6,$2(a6)
bne.s .wb
move.w #Width*Depth,$060(a6)
move.w #Width*Depth,$066(a6)
move.l #-1,$044(a6)
move.l #-$8000,$072(a6)
rts
